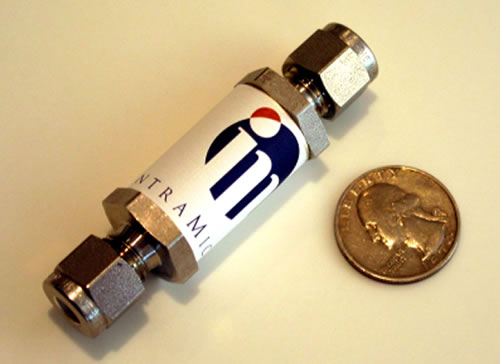

H2S Fuel Cell Sorbent Filter
Protect your fuel cell investment with microfibrous media technology (MMT) by adding this inline filter to your fuel cell's hydrogen supply
Product Description
PEM fuel cells must use ultra high purity hydrogen to function at peak efficiency and achieve maximum useful life. Leading fuel cell manufacturers recommend using hydrogen with a purity of 99.99% or greater to realize these goals. Unfortunately hydrogen is "sold separately" and there are few means of ensuring that your fuel source is free from contaminants. A contaminated hydrogen fuel stream can do serious damage to the fuel cell in a short period of time and make waste of your investment without your knowledge. Hydrogen sulfide (H2S) is a common contaminant in industrial hydrogen that poisons the fuel cell anode catalyst. Because this poisoning mechanism is irreversible, even trace concentrations of H2S in your hydrogen can over time significantly degrade stack performance. IntraMicron's hydrogen sulfide filter is a simple, easy-to-install filter that operates effectively at low temperature using our own patented and highly efficient microfibrous sorption media technology. Simply place this filter inline between your hydrogen source and your fuel cell to get the necessary protection.
Product Specifications
| Materials of Contstruction: | 316 SS housing and fitting |
| Filter Description: | Commercial H2S adsorbent plus proprietary impregnated sintered Nickel fiber composite polishing sorbent |
| Dimensions: | 3" L x ¾" W |
| Connections: | 1/4" Swagelok® inlet and outlet connections |
| H2S Standoff Capability: | 2820 minutes for a 1 kW fuel cell (15 liters H2 per minute with a 1 ppm H2S background) |
| Ultimate Hydrogen Purity: | < 0.01 ppm H2S |
| Adsorption Capacity: | > 60 mg H2S |
